Cutting Blade Material: | Cr 12 | Use: | Safety Guardrail Forming Machine |
---|---|---|---|
Voltage: | 380V 50Hz 3phases | Control System: | PLC With Touch Screen |
Roller Material: | Gcr15 Steel With Quenching | Weight: | 17 Tons |
High Light: | portable roll forming machine,steel roll former |
W beam highway guardrail roll form machine
Product Descriptions
Guardrails are widely used for highway and road and bridges.
The highway guardrail is the main form of the semi-steel guardrail, which is a continuous structure supported by the main column with corrugated steel guardrails.
Collision of its vehicles, because the corrugated steel guardrail plate collision resistance and energy absorption effect, is neither easy to crashed again at the same time for personnel, vehicles and passengers have very good protection effect.
Working Flow

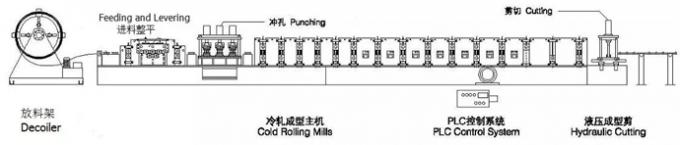

Decoiler -- Leveing -- Punching -- Roll-forming -- cutting -- Output table
Product Parameters
Items | Specifications |
Max Material Thickness | 2-4.0mm |
Hydraulic Uncoiler | 5T |
Leveler | 7Rollers |
Hydraulic Power | 15 kw |
Punching | Hydraulic pre-punching |
Mould Material | Cr12Mov |
Rolling Speed | 10m/min |
Roller Stations | 18 stations |
Roller Material | Gcr15, quench treatment hardness 55-60 |
Shaft | 45#steel |
Shaft diameter | 95mm |
Main Motor Power | 55 kw |
Side structure | Memory archway |
Transmission | Gearbox |
Hydraulic Power | 15 kw |
Blade Material | Cr12Mov |
Tolerance | +-1.5mm |
Electric Source | 380V, 50HZ,3 phase(customized) |
PLC Control System | Panasonic |
Main models
No. | Name | Qty |
1 | Hydraulic uncoiler | 1 |
2 | Leveling | 1 |
3 | Hydraulic Punching | 1 |
4 | Main Roll Forming Machine | 1 |
5 | PLC Control Box | 1 |
6 | Hydraulic Pump Station | 1 |
7 | Output Table | 2 |

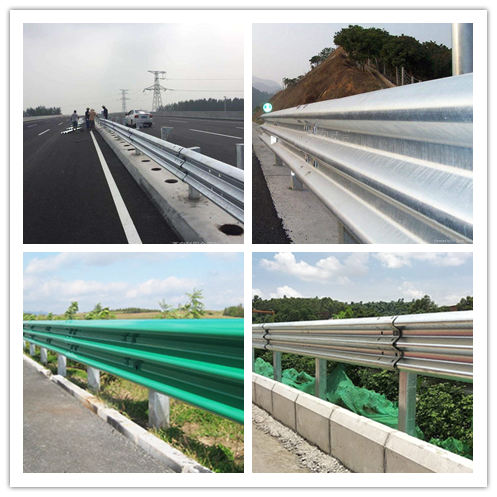

Application pic
The highway guardrail is the main form of the semi-steel guardrail. It is a continuous structure in which corrugated steel guardrails are spliced to each other and supported by the main column. The effect of the vehicle on absorbing energy during its collision is not easy to be destroyed, and it can also protect the vehicle and the passengers.
The bending of the highway guardrail increases the appearance and increases the strength of the slab. Both are available. The automatic production line is extruded, the surface is clean and undamaged, and the corrosion resistance is extremely strong. The surface treatment is mature; anti-corrosion, anti-aging and anti-corrosion The characteristics of drying, high and low temperature, the service life in outdoor environment can reach 10-25 years; The product structure is concise, beautiful and practical, easy to transport, install, good anti-theft performance, limited by actual terrain, for mountain, slope, multi-bend The zone has strong adaptability and moderate cost, which is suitable for large-scale adoption.
Our service
Designing:
After order confirmation, we start to design the machine, such as the basement, structure, rollers, shafts, power, cutting device, programs and so on.
Making:
The main parts, like rollers and shafts are produced by ourselves. We have several high-precision CNC lathe and other kinds of new machine tools, so that the quality and precision can be controlled.
Assembling:
The machines are assembled by technicians with years of experience, which can help workers improve the production efficiency and machine’s quality.
Testing:
Raw material of different specifications are prepared for testing. And during test, long enough material is used. Because if the material is not long enough, some defects can not be exposed.
Delivery:
Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.
Main features
1. We can make and design all kinds of roll forming machine according to customer's requests.
2. This is a very perfect and durable equipment. We have more than 20 years experiences.
3. This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4. We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
